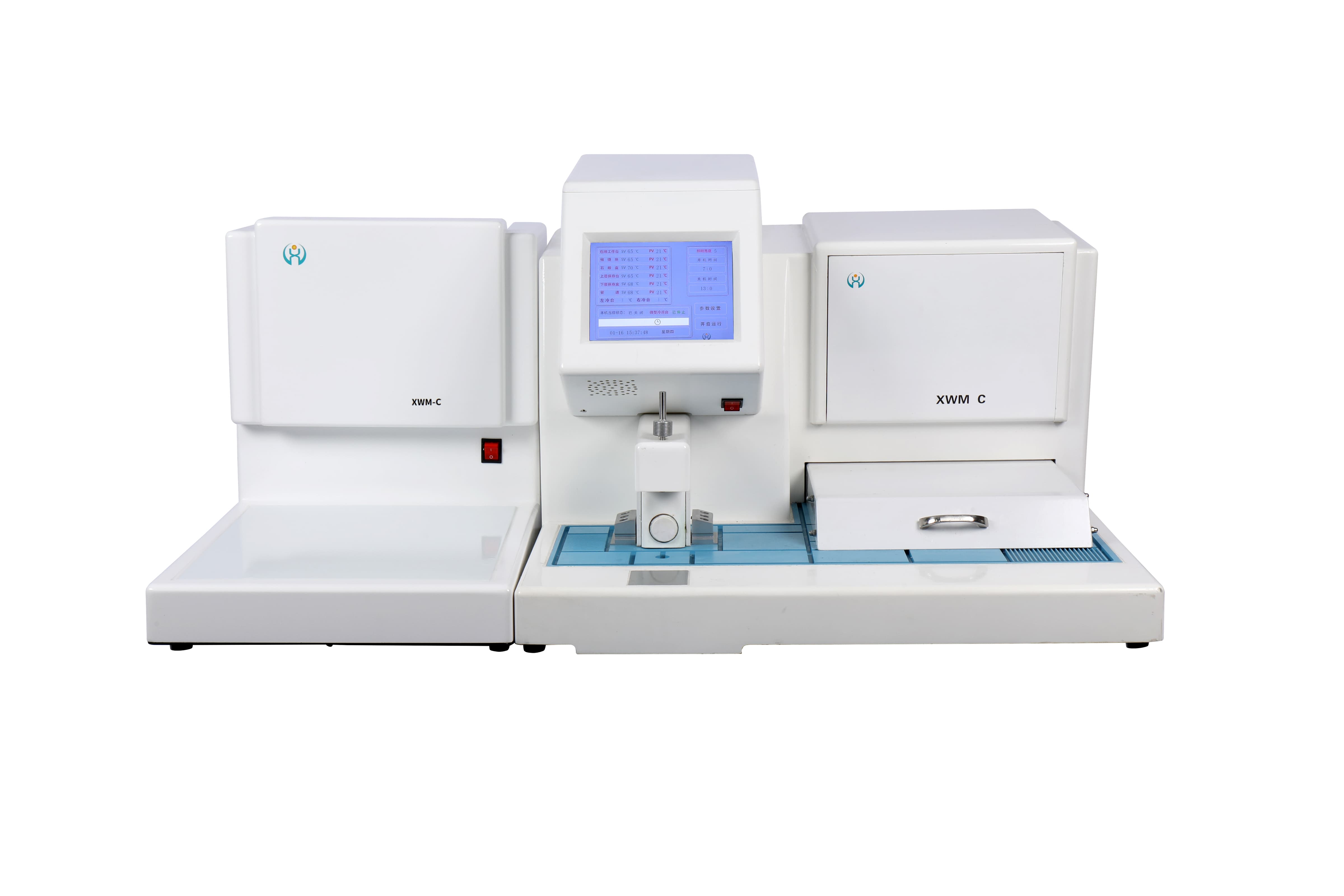

XW-XWM-C Tissue Embedding Center
Description
Reviews
Product Features
· Fully Automatic Programmable Control
· Large-Capacity Paraffin Reservoir
· Color Touchscreen Operation
1. Unique overhead illumination system equipped with an LED light panel, offering 5 levels of brightness adjustment. Illumination duration can be freely customized according to user requirements.
2. Fully automatic programmable control system allows users to preset start-up and shutdown schedules for an entire week. The color touchscreen interface ensures simple and intuitive operation without complicated multi-level menus.
3. Comprehensive safety protection system:
o Built-in temperature protection switch
o Automatic power cut-off when overheating occurs
o Automatic restart once the temperature returns to the normal range
o Six independent temperature control zones with adjustable temperature range from 0–99°C
4. The small cooling area utilizes a semiconductor cooling module, providing rapid cooling performance. Cooling area size: 65 × 65 mm.
5. Independent cooling plate temperature range: Ambient Temperature to -20°C (factory preset).
6. Equipped with a paraffin flow adjustment knob for precise control of wax dispensing volume. An optional magnifier can be installed for enhanced specimen handling.
7. A wax trimming device is integrated into the worktable, allowing convenient edge trimming of embedded paraffin blocks after embedding.
Capacity
· Paraffin Reservoir Capacity: 8 L
o Suitable for embedding approximately 1,000 routine tissue specimens
o Suitable for more than 500 large tissue specimens
· Independent Cooling Plate Capacity:
o Accommodates approximately 70 paraffin blocks simultaneously
· Removable Forceps Holders:
o 6 forceps storage positions
