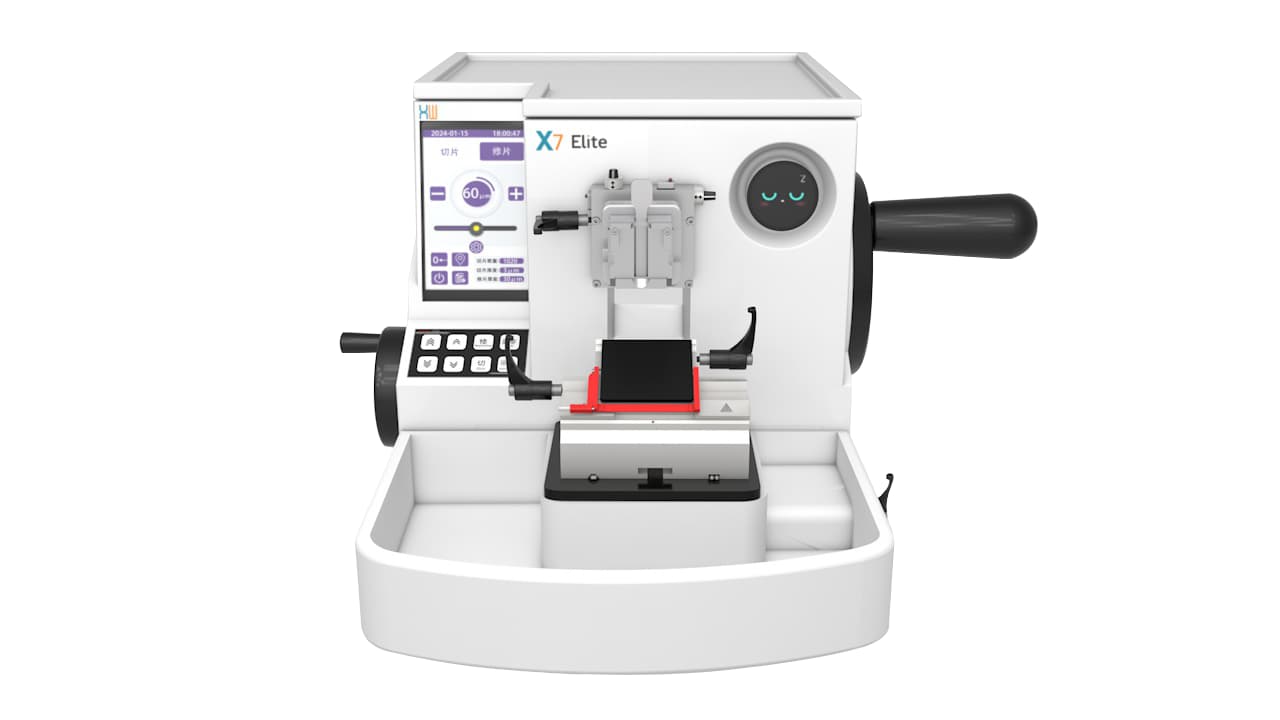

XW-X7 Elite Semi-automatic Paraffins Microtome

Slicing efficiently and smoothly and high quality slices

Get a Quote Now

Description

Reviews

Product Features

Slicing efficiently and smoothly and high quality slices

Precise and uniform ultra-thin sections

Utilizing the adjustability of elastic force and the dual-rail structure provides stable support and guidance to achieve high-precision transmission, ensuring that the transmission system has excellent stability and precision under different working conditions, thereby sectioning out uniform pathological slices and avoiding damage to specimens. 0.5-100 um optional.

Free choice, easy to trim section

Whether manually operating the personalized coarse feed wheel or using one-touch control, the sample can be advanced or retracted to the most suitable position. It can be adjusted forward and reverse, and the user can customize it.

Sleep mode

After the large hand wheel is locked, the main screen and the secondary screen immediately enter sleep mode, which effectively ensures the safety of equipment and personnel.

Dual-screen operation makes section settings easier

The main screen is 5.0 inches, and the Android layout clearly displays the section settings. The secondary screen is 1.54 inches, it clearly displays the slice thickness, and can achieve trimming/slicing conversion with one click.

Antistatic waste tank

The antistatic waste tank keeps the workplace clean,efficient and free of debris. Made of antistatic material, the waste tank prevents waste wax from sticking to the walls. It is so efficient that it reduces cleaning time from minutes to seconds.

Everything you need is on top of the microtome

It can store tools needed for work such as brushes,scrapers, rags, etc.

Maximum specimen size	50mm66mm30mm	Horizontal stroke length	about 30 mm ±1 mm
Vertical stroke length	70mm±1mm	Specimen retraction	In manual sectioning mode: 5-100 μm (5 μm increments); can be turned off In motorized sectioning mode: yes
Specimen orientation	Horizontal rotation:± 8°,Vertical rotation:± 8°	Chuck drive mode	Stepper motor drive
Coarse feed handwheel rotation direction	User selectable - clockwise or counterclockwise Antistatic waste tank capacity:1400 ml	Blade holder	Lateral movement function, 3 points
Handwheel lock	2 pcs, when the large handwheel is locked, the displaywill be displayed as a sleeplock screen	Large handwheel	Can hover at any position in 360°
Section thickness setting	Range:0.5 - 100 μm Setting value: 0.5 - 5 μm (0 .5 μm increments) 5 -20 μm (1 μm increments) 20 - 60 μm (5 μm increments) 60 - 100 μm (10 μm increments)
Trimming section thickness setting	Range:1 - 999μm Setting value: 1 - 10 μm (1μm increments) 10 - 20 μm (2 μm increments) 20 -50 μm (5 μm increments) 50 - 100 μm (10 μm increments) 100 - 999 μm (50 μm increments)
