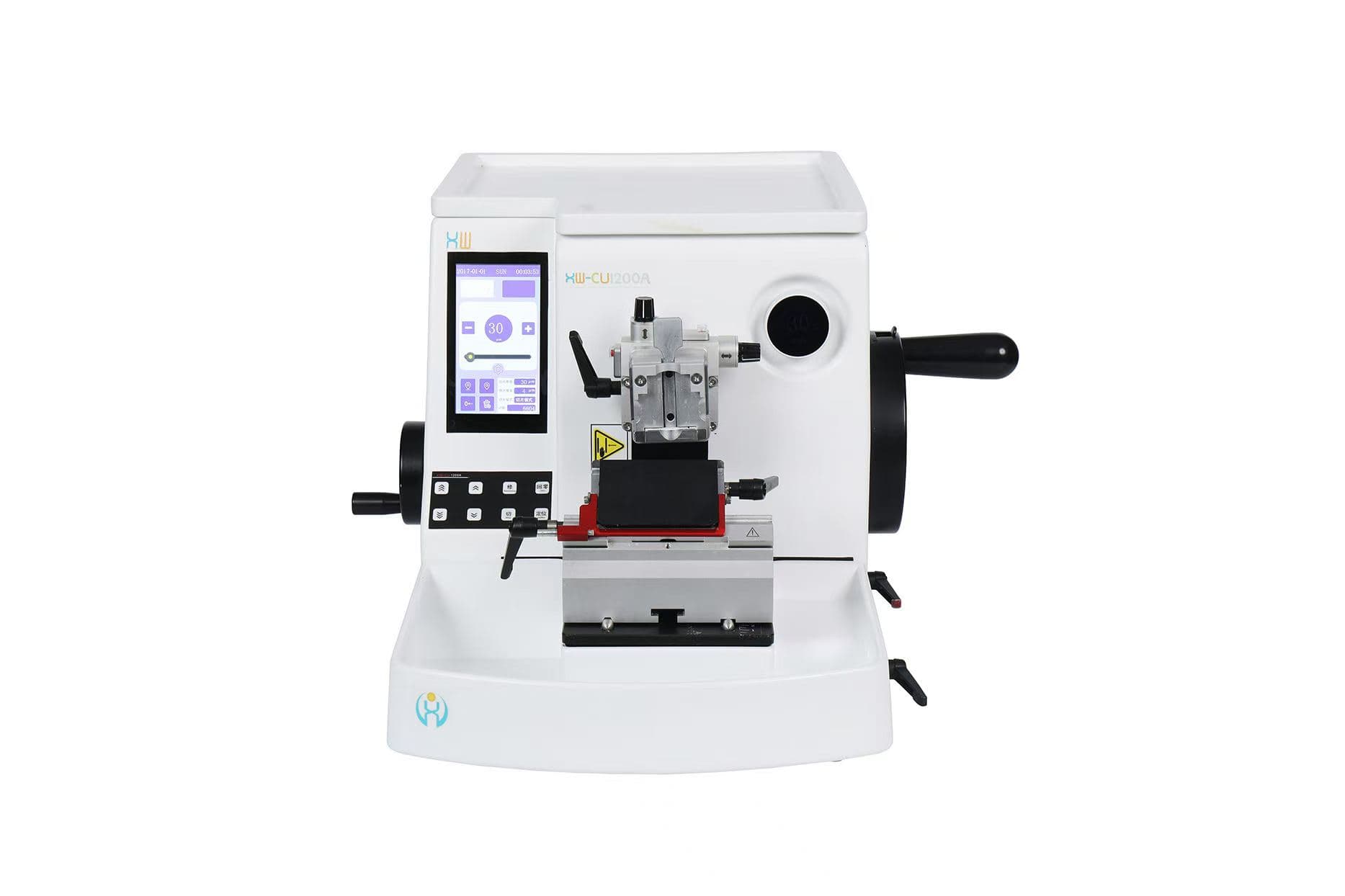

XW-CU1200A Ultra-Thin Intelligent Semi-Automatic Paraffins Microtome

Slicing efficiently and smoothly，high quality slices

Get a Quote Now

Description

Reviews

Product Features

Slicing efficiently and smoothly and high quality slices.

One-touch positioning at 4 preset positions, with automatic adjustment of the specimen clamp position according to sectioning requirements.

Section thickness adjustable from 0.2–100 μm for precise sectioning.

Automatic specimen retraction function for smoother sectioning.

9-point blade positioning function for convenient operation.

Detachable blade holder and blade base for easy cleaning.

One-touch switching between trimming and sectioning modes.

Stable and ergonomic locking lever for a comfortable operating experience.

Precise and uniform ultra-thin sections

Utilizing the adjustability of elastic force and the dual-rail structure provides stable support and guidance to achieve high-precision transmission, ensuring that the transmission system has excellent stability and precision under different working conditions, thereby sectioning out uniform pathological slices and avoiding damage to specimens. 0.5-100 um optional.

Free choice, easy to trim section

Whether manually operating the personalized coarse feed wheel or using one-touch control, the sample can be advanced or retracted to the most suitable position. It can be adjusted forward and reverse, and the user can customize it.

Sleep mode

After the large hand wheel is locked, the main screen and the secondary screen immediately enter sleep mode, which effectively ensures the safety of equipment and personnel.

Dual-screen operation makes section settings easier

The main screen is 5.0 inches, and the Android layout clearly displays the section settings. The secondary screen is 1.54 inches, it clearly displays the slice thickness, and can achieve trimming/slicing conversion with one click.

Antistatic waste tank

The antistatic waste tank keeps the workplace clean,efficient and free of debris. Made of antistatic material, the waste tank prevents waste wax from sticking to the walls. It is so efficient that it reduces cleaning time from minutes to seconds.

Everything you need is on top of the microtome

It can store tools needed for work such as brushes,scrapers, rags, etc.

Item	Specification	Item	Specification
Maximum Specimen Size	50 mm × 66 mm × 30 mm	Paraffin Waste Container Capacity	1400 ml
Vertical Stroke	70 mm ± 1 mm	Specimen Positioning	Horizontal: ±8°Vertical: ±8°
Horizontal Stroke	Approx. 30 mm ± 1 mm	Clamp Drive Method	Stepper Motor Drive
Blade	Lateral movement function, 3 positions	Handwheel	360°; locks at any position
Section Thickness Range	0.2–100 μm	Section Thickness Accuracy	0.2 μm
Clamp	Large tissue clamp available
Coarse Feed Direction	User-selectable (clockwise or counterclockwise)
Handwheel Lock	2 positions; handwheel locking status displayed on the screen
Specimen Return	Manual sectioning mode: 5–100 μm (5 μm increments); can be switched off in electric sectioning mode
Section Thickness Setting	Range: 0.2–100 μm
Trimming Thickness Setting	Range: 0.2–100 μm
