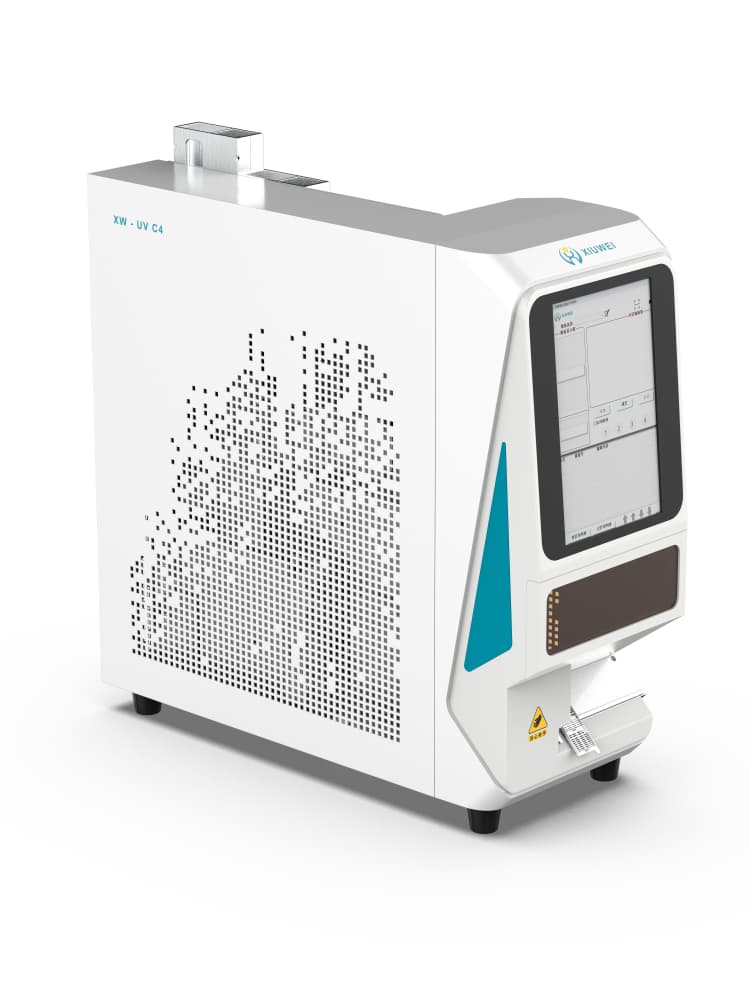

XW-UVC4 UV Laser Cassette Printer

· UV laser marking technology with pure laser printing, requiring no consumables

· Equipped with 8 loading hoppers, each capable of holding 40 tissue cassettes

· Supports pre-loaded cassettes with a maximum capacity of 400 cassettes

· Compatible with one-piece cassettes with attached lids, two-piece cassettes with separate lids, and lidless cassettes

1. Equipped with a 10.1-inch touchscreen display, eliminating the need for an external computer.

2. One-touch start button design for simple, efficient, and user-friendly operation.

3. Printing technology:

o UV laser marking.

o Pure laser printing technology with no consumables required.

4. Printing speed:

o 2–4 seconds per cassette (depending on the amount of information printed).

5. Print quality:

o Printed text, images, and identification information are wear-resistant and corrosion-resistant.

o Permanent marking for long-term storage and traceability.

6. Wide compatibility:

o Supports one-piece cassettes with attached lids, two-piece cassettes with separate lids, and lidless cassettes.

o No special cassette type replacement is required.

7. Advanced loading system:

o Equipped with 8 loading hoppers, including 4 hoppers for one-piece cassettes and 4 hoppers for two-piece cassettes.

o Each hopper can hold 40 cassettes.

o Automatic hopper selection and loading.

o Continuous operation during hopper switching without interrupting printing.

o Supports automatic batch printing and manual hopper selection for printing different cassette colors as needed.

8. Supports direct use of pre-loaded cassettes with a maximum loading capacity of up to 400 cassettes.

9. Capable of printing one-piece and two-piece tissue cassettes simultaneously on the same machine.

10. Transparent observation window allows operators to monitor the printing process and add cassettes at any time for urgent or special printing tasks.

11. Horizontal rail collection system enables convenient cassette collection, saves workspace, and allows easy access whenever needed.

12. Compatible with all HIS (Hospital Information Systems) and LIS (Laboratory Information Systems).

13. Supports printing of symbols, alphanumeric characters, Chinese characters, barcodes, and QR codes.

14. Advanced software functions:

o Multi-level grayscale printing.

o Batch printing and individual printing.

o Customizable field names.

o Supports at least six variable data fields.

15. QR code size is not less than 6 × 6 mm, ensuring reliable scanning performance.
