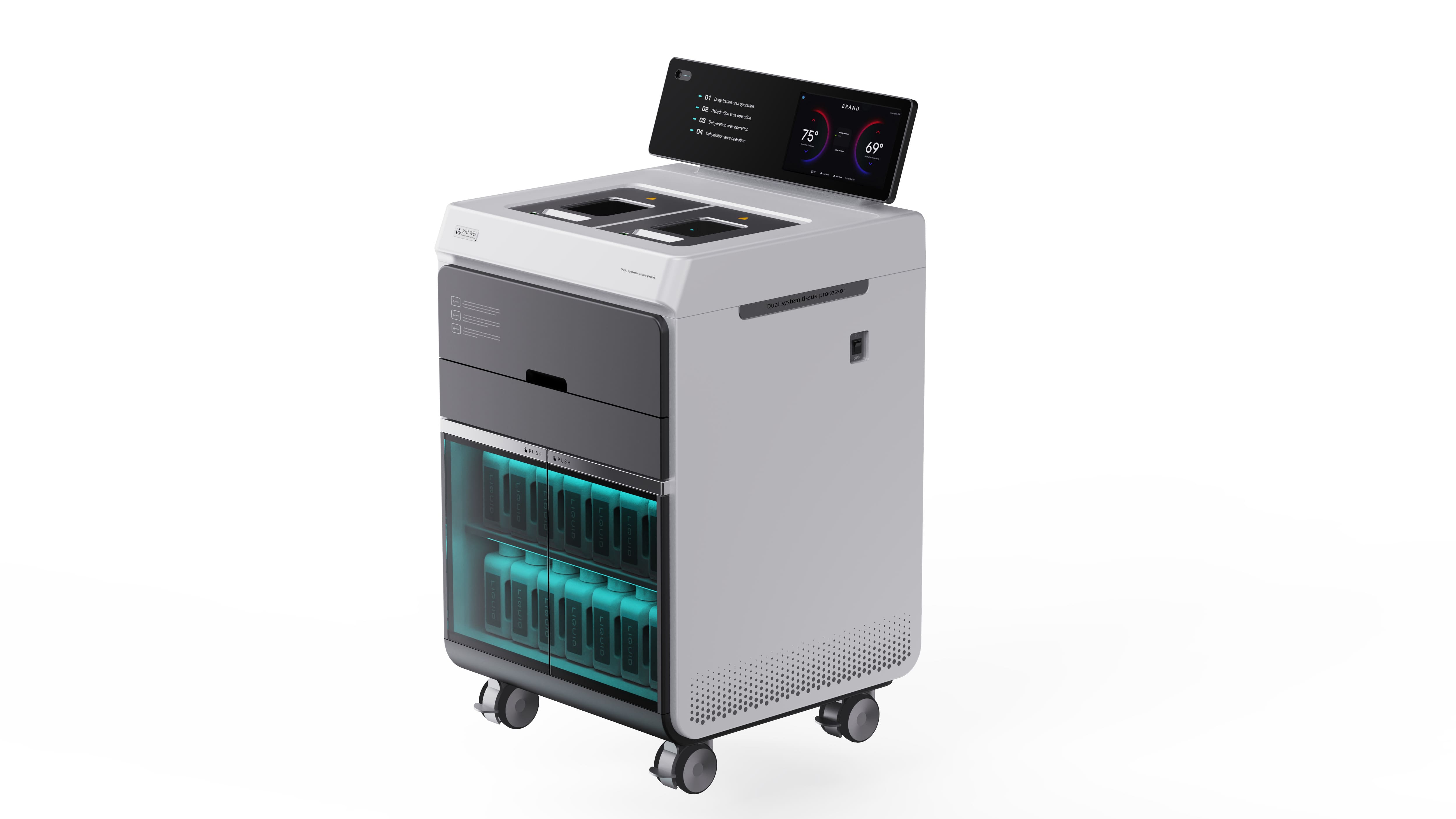

XW-ST660 Fully Enclosed Tissue Processor

AI Intelligent，Dual-Core Dual-Cylinder

Description

Equipped with an external ≥15-inch full-color LCD touchscreen

Detachable display design for flexible positioning

Adjustable viewing angle minimizes operator visual fatigue

User-friendly software interface for streamlined workflow management

Magnetic stirring rotors integrated inside the processing cylinders

Accelerates molecular movement of reagents

Improves contact efficiency between tissue and reagent

Enhances dehydration speed and processing consistency

Individual reagent usage tracking

Programmable processing capacity and effective usage count

Automatic pop-up alerts when reagent limits are exceeded

Reduces risk of insufficient dehydration caused by exhausted reagents

Six segmented photoelectric liquid-level sensors installed inside each chamber

Real-time reagent status monitoring with redundant sensor protection

Single sensor failure does not interrupt operation

More stable and reliable than ultrasonic detection systems

Stores ≥20 customizable dehydration programs

Supports different tissue types and laboratory requirements

Simplifies routine and specialized processing workflows

Real-time monitoring of formalin, alcohol, and xylene concentrations

Concentration values displayed directly on the software interface

Ensures stable dehydration quality

Alerts users when reagent replacement is required

Multi-port rotary valve manufactured from special ceramic material

Resistant to paraffin solidification

Prevents pipeline blockage and reduces maintenance downtime

Category	Specification
Display System	≥15-inch external color LCD touchscreen
Screen Design	Detachable with adjustable angle
Processing Programs	≥20 customizable programs
Tissue Cylinders	≥2 independent chambers
Chamber Function	Separate processing for large and small specimens
Tissue Cylinder Capacity	≥5.5 L each
Batch Throughput	≥600 tissue specimens
Wax Cylinders	≥4
Wax Cylinder Design	Drawer-type
Wax Cylinder Capacity	≥4.5 L each
Wax Temperature Range	Ambient to 65°C
Built-in Reagent Bottles	≥16
Liquid-Level Sensors	Six segmented photoelectric sensors
Stirring System	Internal magnetic stirring rotors
Rotary Valve Material	Special anti-clogging ceramic
Reagent Monitoring	Formalin, alcohol, and xylene concentration detection
Alert System	Automatic reagent replacement alerts
